YRM贴片机
· Fusion with Σ technology achieves overwhelming productivity
· Broad-ranging production capacity thanks to the 1-head solution
· Standard features that maintain component mounting quality at a peak level!
· Ensures high-efficiency production with a full range of functions!
|

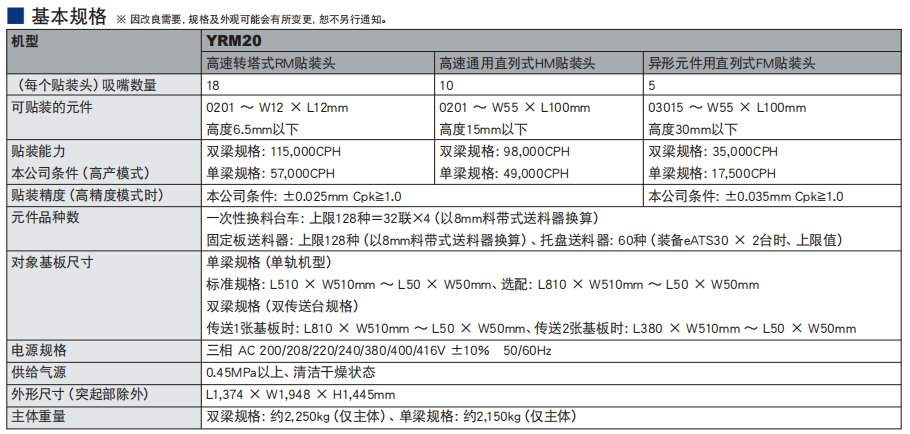

Model |
YRM20 |
|
|
High-speed general-purpose rotary RM head |
IN-LINE HM head |
|
|
Nozzles (per 1 head unit) |
18 |
10 |
|
Applicable components |
0201 to W12 x L12mm, Height 6.5mm or less |
0201 to W55 x L100mm, Height 15mm or less |
|
Mounting capability |
115,000CPH |
98,000CPH |
|
Mounting accuracy |
During use under in-house optimal conditions : ±0.025mm Cpk≧1.0 |
|
|
Number of component Types |
Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) |
|
|
PCB dimensions |
Dual-stage specifications |
|
|
Power supply |
3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
|
|
Air supply source |
0.45MPa or more, in clean, dry state |
|
|
External dimension |
L1374 x W1948 x H1445mm |
|
|
Weight |
Approx. 2,250kg (Main unit only) |
|
Specifications and appearance are subject to change without prior notice.
